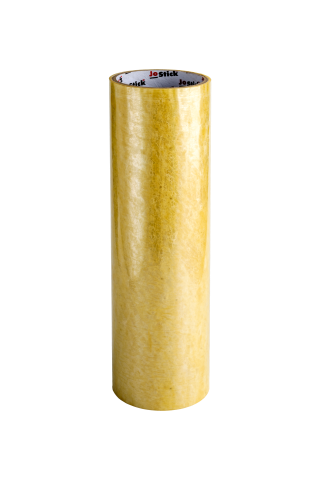

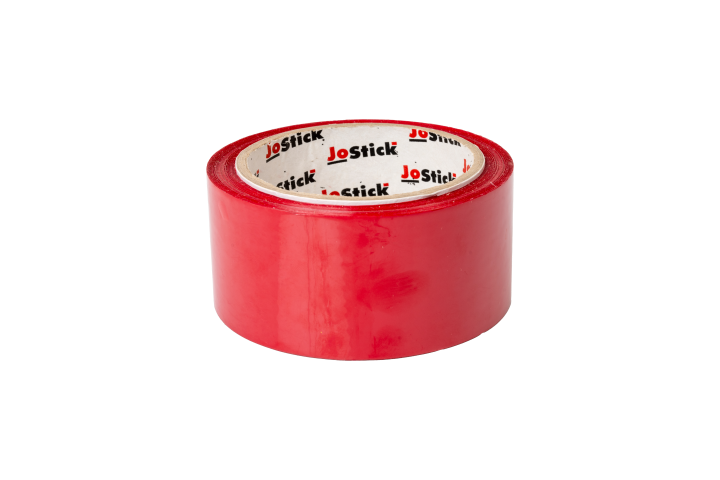

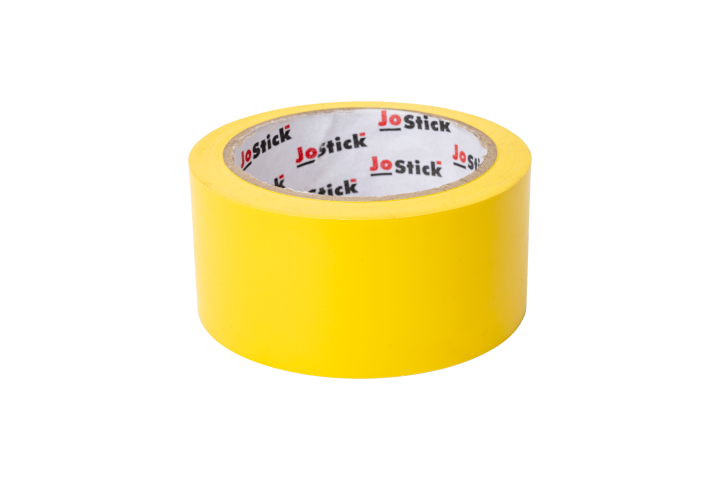

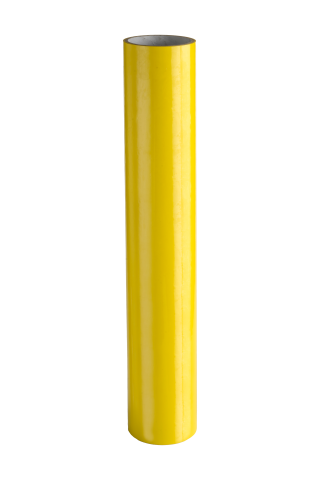

Polyester Tape B Class

Polyester tape is a versatile adhesive tape made from a durable polyester film, coated with a strong adhesive on one side. Known for its excellent durability, it resists moisture, chemicals, and high temperatures, making it suitable for a wide range of applications, including electrical insulation, packaging, labelling. Its strong adhesion and flexibility make it an ideal choice for both industrial and consumer use.

Typical Physical Properties

Property Value
1 Colour Yellow,Black,Transparent.
2 Thickness 0.050 mm
3 Temperature 130°C
4 Standard Roll Length 50 Meter
5 Standard Width 10mm,24mm,25mm,50mm

Application & Use

  • Film and foil capacitors
  • Phase and coil-end insulation
  • Very good varnish resistance properties
  • Strengthening of edges for slot
  • Core layer and final insulations of transformers, SMPS, chokes, coils, etc.
  • Transformer windings
  • Cable jointing
